C O M B I N A T I O N
S L A B T R I M S A W S
Great for cutting slabs, facing mine rough, slicing petrified wood,|
preforming spheres, making clocks, bookends, etc.
Can also be used for cutting glass and core samples
|Size||Name or Brand||Description||Price|
Click on photos

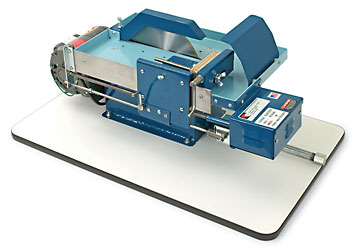

precision-built power-feed slab/trim saw
has a clutch-activated power feed for slabbing that can be used in
conjunction with the crossfeed indexing rock vise. Each turn of the crossfeed handle moves the vise
1/16”, with over 2” of crossfeed travel. The vise holds up to 4” of material and can be swung clear
for handheld trimming. A toggle switch allows the saw motor to operate independently of the power
feed system for manual slabbing or trimming. The power feed system can be set for automatic shutoff.
The PF10 accepts 8", 9" and 10" blades. The 12" x 19-1/2" self-aligning tabletop is easily removable for blade changes, oil filling and tank cleaning. A large coolant tank reduces the need for frequent sludge removal. A 1/3 HP motor drives a heavy-duty 5/8" steel shaft with sealed bearings. Full belt cover is included for operator protection. Baseboard and drain pipe included.
The PF10 comes with a sheet metal table cover to minimize coolant spray outside of the sawing table area. The cover has a clear top for easy viewing.
The PF10 utilizes a 1/3 HP 110 volt/60Hz 5.8 Amps Continuous Duty Motor delivering 1725 RPM fixed, Ball bearings, permanently sealed. Power feed motor is 1/250 HP 110volt/60Hz Dayton shaded pole AC gearmotor delivering 4 RPM (full load) fixed with 18 inch-lbs torque utilizing Sleeve-bushing, permanently sealed with a 5/16 inch arbor.
We recommend only using oil as a coolant for this saw. If water is used as a coolant tank should be drained after each use and a rust inhibitor additive utilized (i.e. Tool cool or Lube Cool).
PF10 Trim Saw Includes: Clutch-activated power feed with automatic shutoff. Built-in crossfeed rock vise. 10" x .040 303C Professional continuous rim blade. Spray cover. Motor, baseboard, GFCI & sharpening stick
Shipping weight: 95 lbs.
Requires coolant oil.
Our Price $1099.00
|This compact, precision 10" slab saw has all the features of larger saws.
A positive power feed with automatic shut-off switch, fully adjustable carriage,
screw action cross feed control, and secure compression vise.
Slabs 4" x 6" rough and can be converted for trimming by a drop-in plate replacing vice (not included).
It has a detachable coolant tray for easy cleaning, sealed ball bearings, clear hinged plastic hood, safety switch,
and a top mounted motor to save on bench space. It measures 20" wide x 24" long.
Comes complete with 1/3 HP Motor, a 10" x .032 Vanguard diamond. Requires 1.3 gallons of coolant.
Shipping weight 85 lbs. (2 boxes).
Requires coolant oil.
Our Price $1129.00
Slab & Trim Saw
|This saw comes complete with features that make it popular
with professionals and hobbyists alike. It has a power feed that slabs smoothly and consistently,
or you can swing the vice out of the way to trim slabs.
The table measures 13" x 20" with 7" clearance in front of the blade for ample workspace.
The positive hold down on vice helps prevent blade damage.
The crossfeed handle moves vice exactly 1/16" per turn for gauging slab thickness.
The ball bearing arbor is precisely aligned and lubricated for life.
The lift out sump is quickly and easily cleaned. Use OIL ONLY with this saw.
The standard power in feed rate is 10" per hour for smooth cutting on hard materials.
The clear Plexiglass hood helps contain the oil mist. Comes complete with power feed,
110v 1/3 HP motor, motor base, belt guard, Plexiglass hood, splashguard, 10" x .040 blade
with 5/8" center hole. Ready to run.
Shipping weight 75 lbs. Allow 2 to 3 weeks for delivery.
Optional 220v/50 Hz 1/3 HP motor...add $65.
Requires coolant oil.
Buy from us and save $90.00 off the above price
|First, this saw has all of the features needed to make it a
versatile trim and slab saw. Easy to use as a trim saw because the
vice rotates off to one side to free the table for trimming.
With the vice in place, you can slab rocks up to 3-1/2" in diameter.
Table measures 12"W x 17" L. Overall size approximately 26" L x 15" W.
Second, this saw is manufactured from original Highland Park tooling, the company long known for its exceptional saws. It's built solid and rugged with cast aluminum construction with durable, impact-resistant finish. Arbor shaft is 5/8" stainless steel with lubricated, factory sealed ball bearings, and an extra neoprene oil seal on the tank side.
Vice jaws are steel plate with hardwood facings. Designed for a time-tested, economical gravity feed system, the vice has 1-1/2" lateral movement for cross-feeding and adjustable stop guide for constant thickness cuts.
Shipping weight 68 lbs.
Comes complete with 1/3 HP motor and a 10" vice, and splash guard.
Diamond Pacfic no longer includes a blade.
Blade must be ordered separately.
We recommend the 10" MK-303 Professional Saw Blade by MK Diamond having a .040 rim thickness... add $78.00
However, if you want to cut hard materials such as agate and petrifired wood with unprescedented speed, We suggest obtaining the MK-301 Gemking having a .060 rim thickness... add $121.00. Add 2 lbs ship. wt. per saw blade.
The saw should be used with oil as a coolant. We recommend using Roc-Oil, a food grade mineral oil... add $26.50 per gallon Add 10 lbs ship. wt. per gallon.
with 110V 60Hz motor
with 220V 50Hz motor
Buy from us and save $100.00 off the above prices
without leg stand
with leg stand
A Great Saw
for the Price
Portable Combination Slab and Trim Saws
Shipping cost involves three Boxes as follows:
Box 1: Weight - 135 lbs. Size - 37" x 26" x 26"
Box 2: Weight - 28 lbs. Size - 16" x 12" x 10"
Box 3: Weight - 27 lbs. Size - 36" x 15" x 5"
Requires coolant oil.
Optional steel leg stand... add $165.00
Ship Wt. 30 lbs. 31" X 17" X 6"
If POWER FEED is preferred instead of weight feed, add $195.00
Has over-running clutch & cut-off switch.
Ship Wt. 7 lbs.
Add $67.00 for 220v 50 Hz
Covington Warranty says in part: "If what ever you buy from Covington is defective in any way, we will repair or replace the defective parts f.o.b. factory for as long as you own the machine. If you return the defective part to our factory, we will repair or give you a new part free of charge."
That's confidence in their manufacturing process.
12" x .040
14" x .050
16" x .075
Buy from us and save $140.00 off the above price
