| R O T A T I N G
F L A T L A P M a c h i n e s | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| The smaller machines are great for cabbing and/or polishing small flats or rounds on smaller rocks and gemstones such as opals, phenomenal stones having stars or cats-eyes, and other stones of belt buckle size or smaller. The bigger machines are excellent for grinding and polishing larger flats on stone, glass, optics, having diameters greater than 3" to 4" such as geodes, nodules, bookends, petrified wood, etc. | ||||||||||||
| Size | Name or Brand | Description | Price | |||||||||
|
6" |
ALL-YOU-NEED Diamond Lapidary Machine by HI-TECH |
A complete grinding, shaping, smoothing and polishing lapidary unit. ALL-YOU-NEED is easy to use from start to finish. Completely portable. Great for trailers, apartments, kitchens or any small or confined work areas. Very quite and clean usage. Measures 12" wide x 12" deep x 12" high or 16" (with water drip container attached). The 6" machine weights just under 8 pounds. This horizontal diamond grinding/polishing unit comes complete with:
|
all this for only $489.00 What a deal! Every day low price $469.95 Add $65.00 for 220v* |
|||||||||
|
6" |
Inland Lapidary SwapTop™ 6" Flat Lap Machine Check for availability |
The SwapTop™ 6" Flat Lap is the most affordable full-featured cabbing set up on the market. Because of its unique low profile design, the SwapTop can be taken anywhere, but it will still pass muster on the workbench at home. Water cooled system means no messy oil to clean up. Faster RPM motor allows you to quickly finish the finest cabs possible. This machine includes (almost*) everything you need to start making cabochons today. Key Features:
|
Retail List Price $349.95 Every Day low price $315.00 115V/60Hz Add $15.00 for 230v/240v* | |||||||||
|
6" |
Same as above but includes two conversion kits
Inland Lapidary SwapTop™ 6" All-In-Wonder™ Complete Lapidary Workshop Check for availability |
SwapTop™ 6" All-In-Wonder™ Complete Lapidary Workshop The 6" SwapTop™ All-In-Wonder™ is the most affordable 8" complete cabbing system on the market. Because of its unique low profile design, the SwapTop can be taken anywhere, but it will still pass muster on the workbench at home. The All-In-Wonder can be set up as an 6" Flat Lap, a 6 1/2" Trim Saw, and/or a 1" Drum Grinder / Shaper. Each of the three machines can be set up in just minutes. Water cooled system means no messy oil to clean up. Faster RPM motor allows you to quickly finish the finest cabs possible. This machine includes (almost*) everything you need to start making cabochons today. Many alternate voltages and or plug configurations are available at a small additional cost. Indicate what country you are in and the type of plug configuration you prefer. Key Features:
|
Retail List Price $479.95 Every Day low price $449.00 115V/60Hz Add $19.00 for 230v/240v* | |||||||||
|
6" |
(Click on Photos to enlarge)  Crystalite CrystalMaster 6 Plus |
For professionals, hobbyists and first time users. This sturdy durable unit is compact and portable. Has a variable speed - 115 volt motor and a variable water flow system. A multi-purpose unit, GRINDING, SMOOTHING AND POLISHING all in one. Will accommodate discs with 1/2" center hole or 1/4-20 screwback mount. Comes complete with:
|
$867.00 Now on SALE for $789.00 Add $85.00 for 220v* |
|||||||||
|
8" |
Inland Lapidary SwapTop™ 8" Flat Lap Machine Check for availability |
The SwapTop™ 8" Flat Lap is the most affordable 8" cabbing set up available today. With over 75% more diamond surface than our 6" machine, you can work bigger pieces and work faster than ever before. Because of its unique low profile design, the SwapTop can be taken anywhere, but it will still pass muster on the workbench at home. Water cooled system means no messy oil to clean up. 2800 RPM motor allows you to quickly finish the finest cabs possible. This machine includes (almost*) everything you need to start making cabochons today. * Rocks sold separately. Key Features:
|
Retail List Price $449.95 Every Day low price $415.00 115V/60Hz Add $15.00 for 230v/240v* | |||||||||
|
8" |
Same as above but includes two conversion kits
Inland Lapidary SwapTop™ 8" All-In-Wonder™ Complete Lapidary Workshop Check for availability |
SwapTop™ 8" All-In-Wonder™ Complete Lapidary Workshop The 8" SwapTop™ All-In-Wonder™ is the most affordable 8" complete cabbing system on the market. Because of its unique low profile design, the SwapTop can be taken anywhere, but it will still pass muster on the workbench at home. The All-In-Wonder can be set up as an 8" Flat Lap, a 6 1/2" Trim Saw, and/or a 1" Drum Grinder / Shaper. Each of the three machines can be set up in just minutes. Water cooled system means no messy oil to clean up. Faster RPM motor allows you to quickly finish the finest cabs possible. This machine includes (almost*) everything you need to start making cabochons today. Many alternate voltages and or plug configurations are available at a small additional cost. Indicate what country you are in and the type of plug configuration you prefer. Key Features:
|
Retail List Price $579.95 Every Day low price $549.00 115V/60Hz Add $21.00 for 230v/240v* | |||||||||
|
8" |

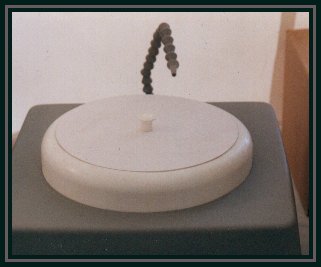

Crystalite CrystalMaster 8 covered with lid in-place  |
For professionals, hobbyists and first time users. This sturdy durable unit is compact and portable. It is excellent for larger work pieces, flats, cabochon backs and in-lay work.
|
$1527.25.00 Every Day low price $1399.95 Add $75.00 for 220v* | |||||||||
8" |
ALL-YOU-NEED Diamond Lapidary Machine by HI-TECH |
A complete grinding, shaping, smoothing and polishing lapidary unit.
ALL-YOU-NEED
is easy to use from start to finish. Completely portable. Great for trailers, apartments, kitchens or any small or confined work areas.
Very quite and clean usage. Measures 14" wide x 14" deep x 14" high or 18" (with water drip container attached). The 8" machine weights just under 15 pounds.
This horizontal diamond grinding/polishing unit comes complete with:
|
all this for only $615.00 What a deal! Every day low price $549.95 An even better deal! Add $75.00 for 220v* |
|||||||||
| 8" |
Horizontal Combo Units by Covington |
Portable units for polishing all types of material.
Great for mobile homes, apartments, travel, etc.
Measures 23" long x 12" wide x 11" high.
Saws, grinds, sands, and polishes.
Husky 5/8" hardened steel arbor rides in precision ball bearings that are double sealed and greased for life.
Made of cast aluminum.
Comes with 3" crossfeed, 8" diamond blade, grinding wheel, sanding wheel, polishing wheel, 3-3/4" rock vice, drip can water system, weight feed cord, scale, coolant, polishing powder, brush, dop sticks, dop wax, gem cutting book and complete instructions. Shipping weight 39 lbs. 1/3 HP 110v Motor, pulley, and belt sold separately. 1/3 HP 110v Motor, pulley, and belt (18 lbs)...$165.00 |
Retail List $825.00 Every day LOW price $679.00 Add $55.00 for 220v* | |||||||||
| 10" |
Horizontal Combo Units by Covington |
Portable units for polishing all types of material.
Great for mobile homes, apartments, travel, etc.
Measures 23" long x 12" wide x 11" high.
Saws, grinds, sands, and polishes.
Husky 5/8" hardened steel arbor rides in precision ball bearings that are double sealed and greased for life.
Made of cast aluminum.
Comes with 3" crossfeed, 8" diamond blade, grinding wheel, sanding wheel, polishing wheel, 3-3/4" rock vice, drip can water system, weight feed cord, scale, coolant, polishing powder, brush, dop sticks, dop wax, gem cutting book and complete instructions. Shipping weight 39 lbs. 1/3 HP 110v Motor, pulley, and belt sold separately. 1/3 HP 110v Motor, pulley, and belt (18 lbs)...$165.00 |
Retail List $899.00 Every day LOW price $729.00 Add $55.00 for 220v* | |||||||||
|
12" |
 Crystalite CrystalMaster Pro 12 (Click on Photos to enlarge) |
For professionals , hobbyists and first time users. This sturdy durable unit is somewhat compact and portable. Lots of power with a high-torque 3/4 HP direct drive 115 volt motor for optimum performance. Variable speed control from 400 to 1100 rpm. Uses magnetic backed disc for quick efficient changes in mesh sizes. Full 12" no arbor hole disc capacity. Uses either a recirculating or direct water supply. Brush type splash guard allows large work pieces to pass over while keeping spray inside. Flexible coolant spout directs a heavy coolant stream to any area of the cutting surface. 1 year warranty. Note: Submersible pump and discs are not included, must be ordered separately or with kit. Shipping weight 37 lbs. Companion Kit includes:
|
$2100.00 Every day LOW price $1899.00 Add $140.00 for 220v* Kit $1368.00 Every day LOW price $1279.00 | |||||||||
12" |
shown withvariable-speed controller Model 12RLby Diamond Pacific formerly made by Contempo  (Click on Photos to enlarge) |
Precision lapping with maximum stability and wheel balance. Laps are heavy duty and made of cast iron machined to exacting tolerances. They are grooved with concentric circles for retention of the abrasive charge. Produces truly FLAT surfaces. The arbor shaft is 1" in diameter. Bearings are lubricated and sealed to completely shield against contamination. The water reservoir has an adjustable valve to regulate the flow of water or the water-abrasive mixture. The fabricated steel plate tank provides stability and many years of heavy-duty service. Please indicate if you are intending to use magnetic Novas on this machine or Cast Iron laps. Box of machine measures 15" x 15" x 6". Height from top of box to bottom of frame is 12". Comes complete with a 12" cast-iron lap, a 1/3 HP 110v 60 Hz Motor, 3-wire cord, heavy-duty motor switch, pulley, and belt. These are SPECIAL ORDER machines.
(12 lbs)...$475.00 |
110v Model $1725.00 Every day low price $1675.00 220v Export* Model $1960.00 Every day low price $1869.00 110v Variable Speed Model $2890.00 Every day low price $2790.00 Check for availability |
|||||||||
18" |
Model 18RLby Diamond Pacific formerly made by Contempo |
Precision lapping with maximum stability and wheel balance. Laps are heavy duty and made of cast iron machined to exacting tolerances. They are grooved with concentric circles for retention of the abrasive charge. Produces truly FLAT surfaces. The arbor shaft is 1" in diameter. Bearings are lubricated and sealed to completely shield against contamination. The water reservoir has an adjustable valve to regulate the flow of water or the water-abrasive mixture. The fabricated steel plate tank provides stability and many years of heavy-duty service. Box of machine measures 24" x 24" x 34" high and is set on legs. Comes complete with an 18" cast-iron lap, a 1/3 HP 110v 60 Hz Motor, 3-wire cord, heavy-duty motor switch, pulley, and belt. Please indicate if you are intending to use magnetic Novas on this machine or Cast Iron laps. These are SPECIAL ORDER machines.
(12 lbs)...$789.00 |
115v Model $2625.00 Every day low price $2599.00 220v Export* Model $2860.00 Every day low price $2789.00 110v Variable Speed Model $4150.00 Every day low price $3999.95 Check for availability |
|||||||||
*Add $35.00 for processing paperwork on overseas requests of export models (230v).
Purchase three to five lap machines
and receive a 5% Discount.
Purchase six or more lap machines
and receive a 10% Discount.
